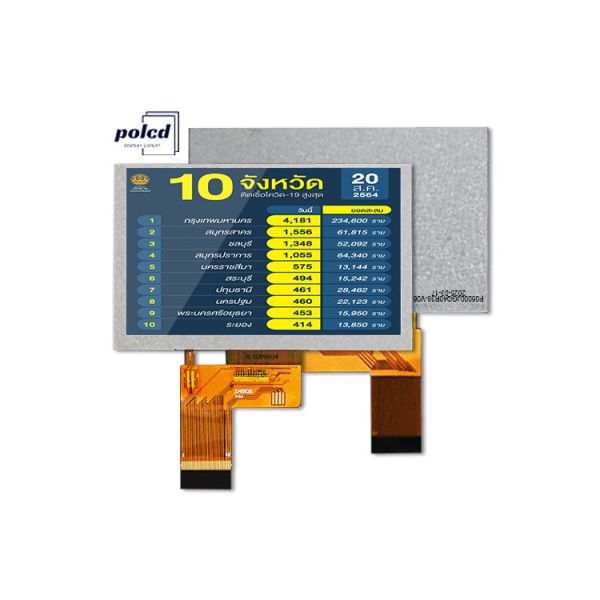

Polcd 5.0 Inch TFT LCD Panel 800*480 Resolution 500nits RGB Interface 5" TFT Screen Module

Brand Name : Polcd

Model Number : P05000JGQ40R38-V06

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram

Supply Ability : 25,000 PCS per day

Delivery Time : 1-7 working days

Packaging Details : FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Resolution : 5 inch 800x480

Display mode : TFT Transmissive

Viewing Direction(eye) : IPS Full View Angle

Driver IC : ST7265

Display area : 108.00(H)x64.80(V) mm

Brightness : 500 nit

Contrast Ratio : 1500:1

Interface : RGB 24bit

Contact Now

Specifications:

P05000JGQ40R38-V06 is a color active matrix liquid crystal display module using amorphous silicon TFT (thin film transistor). The module consists of a color TFT-LCD panel, driver IC, FPC and backlight unit. The module display area is 800x480 pixels. This product complies with RoHS environmental standards.

Parameter:

Model P05000JGQ40R38-V06
Screen Size 5 inch
Number of Pixel 800RGB(H)x480(V)
Active area (WxH) 108.00*64.80mm
Pins 40 pins
Module outline (W*H*D) 120.8*75.95*2.9(Typ)mm
LCD Type TFT Transmissive
Viewing Direction(eye) ALL
Luminance(cd/m2) 500 nit
Contrast Ratio 1500:1
Interface Parallel RGB 24-bit
Back-light LED Side-light type
Drive IC ST7265
Operation Temperature -20~70℃
Storage Temperature -30~80℃
Input voltage 3.3v

Polcd 5.0 Inch TFT LCD Panel 800*480 Resolution 500nits RGB Interface 5" TFT Screen ModulePolcd 5.0 Inch TFT LCD Panel 800*480 Resolution 500nits RGB Interface 5" TFT Screen Module
